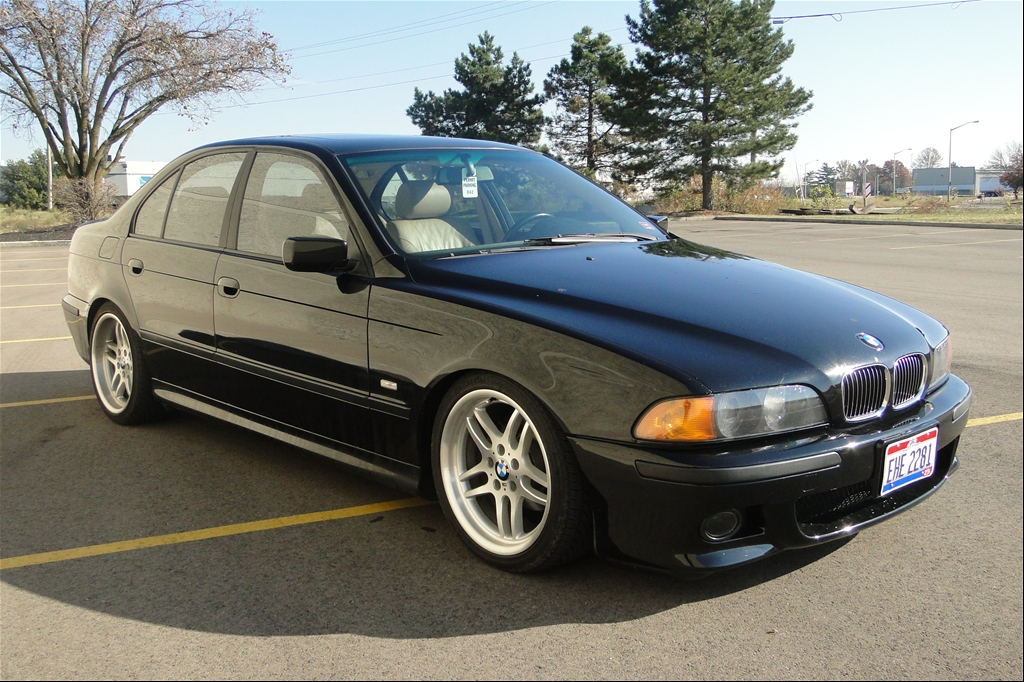

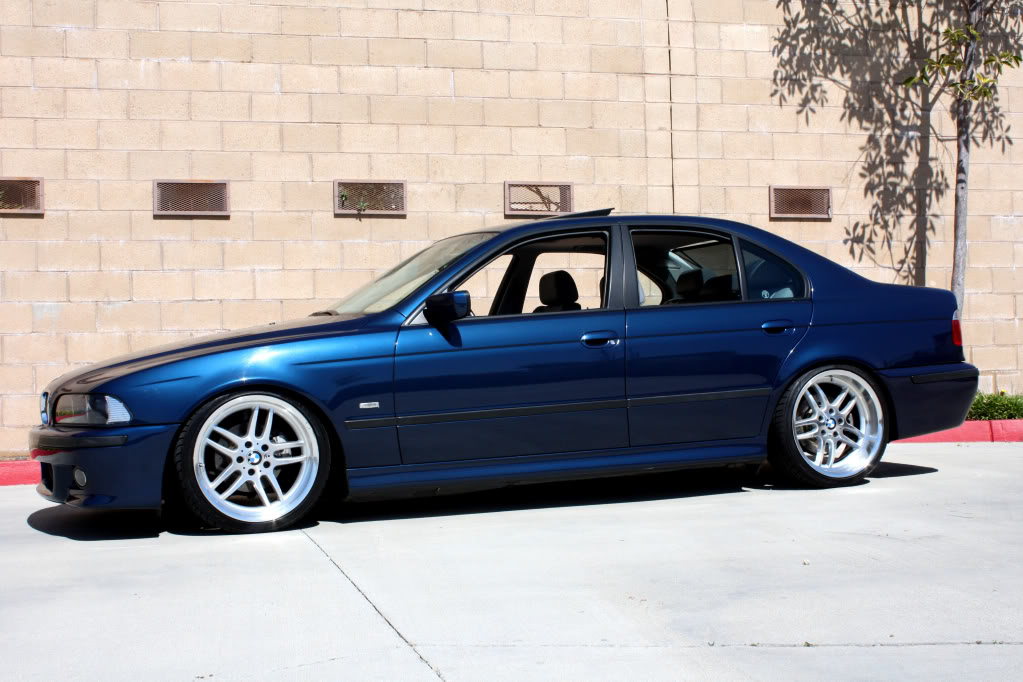

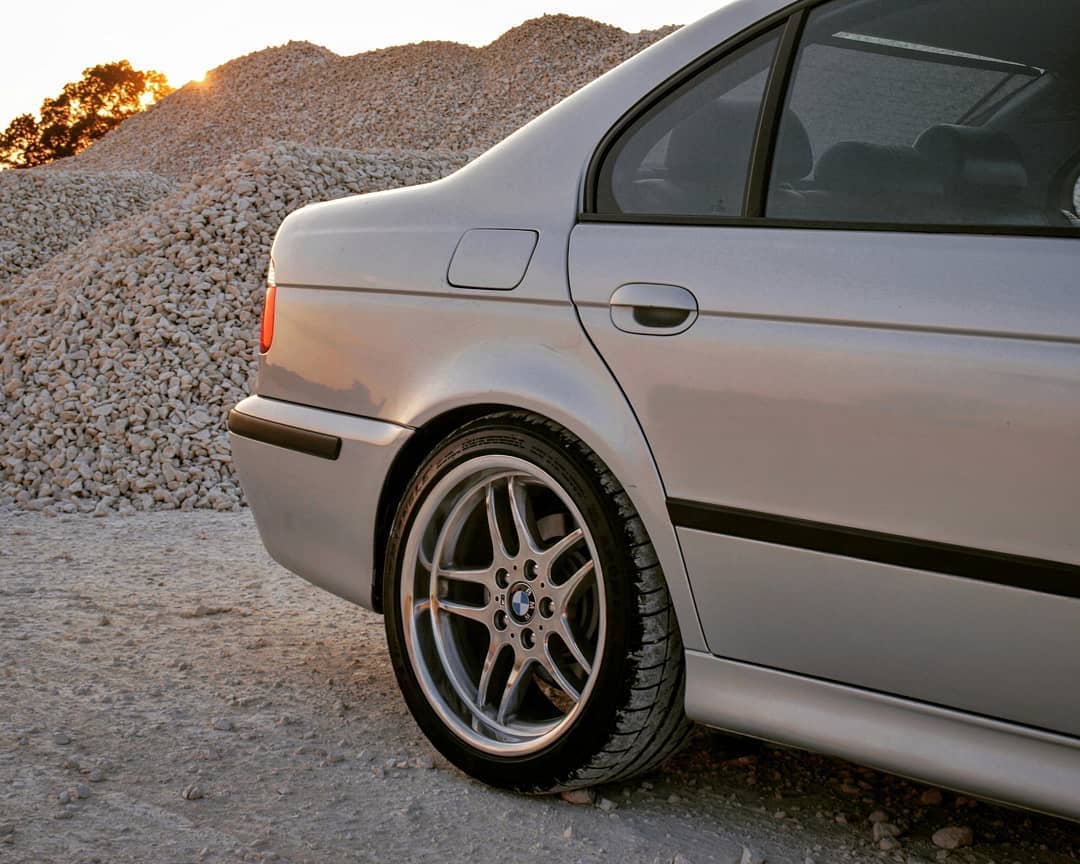

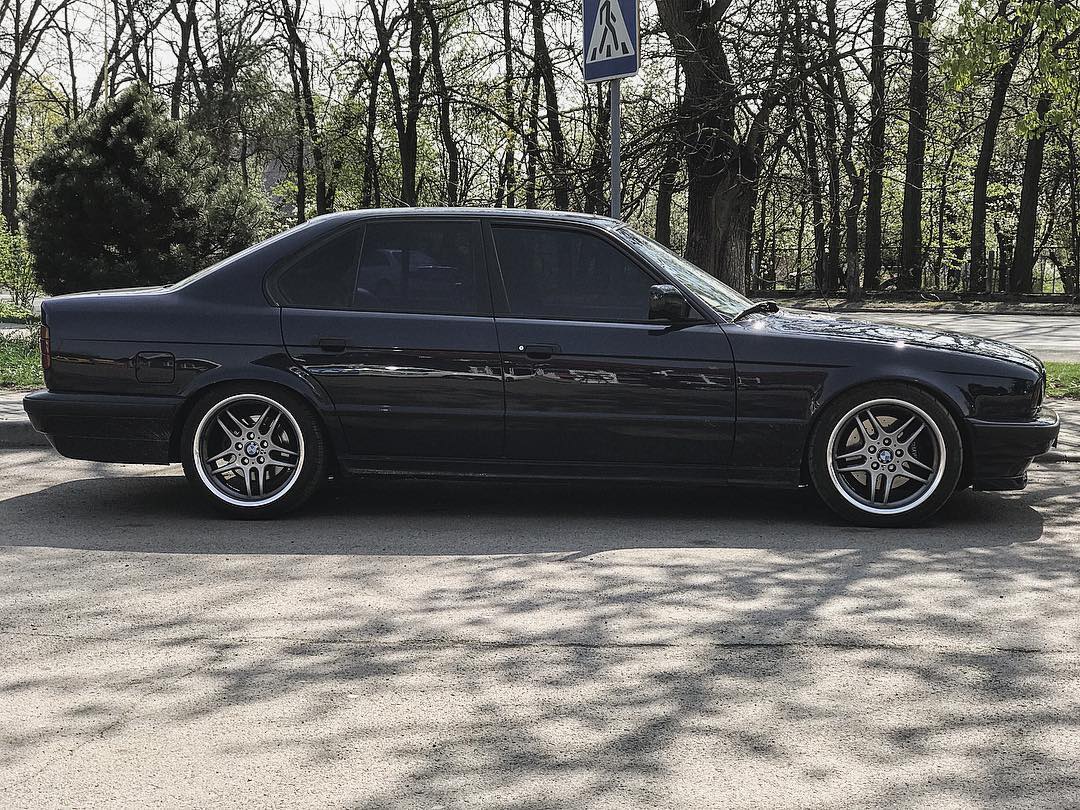

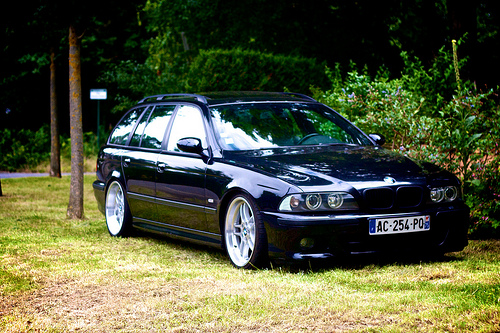

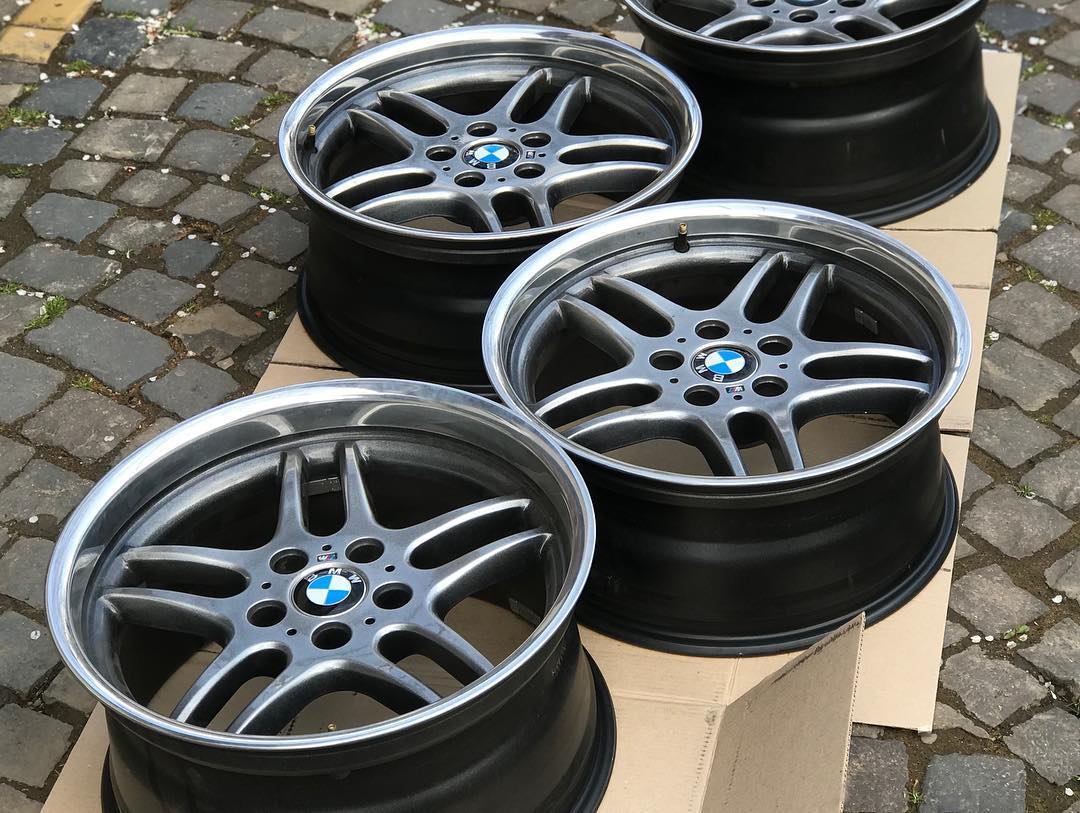

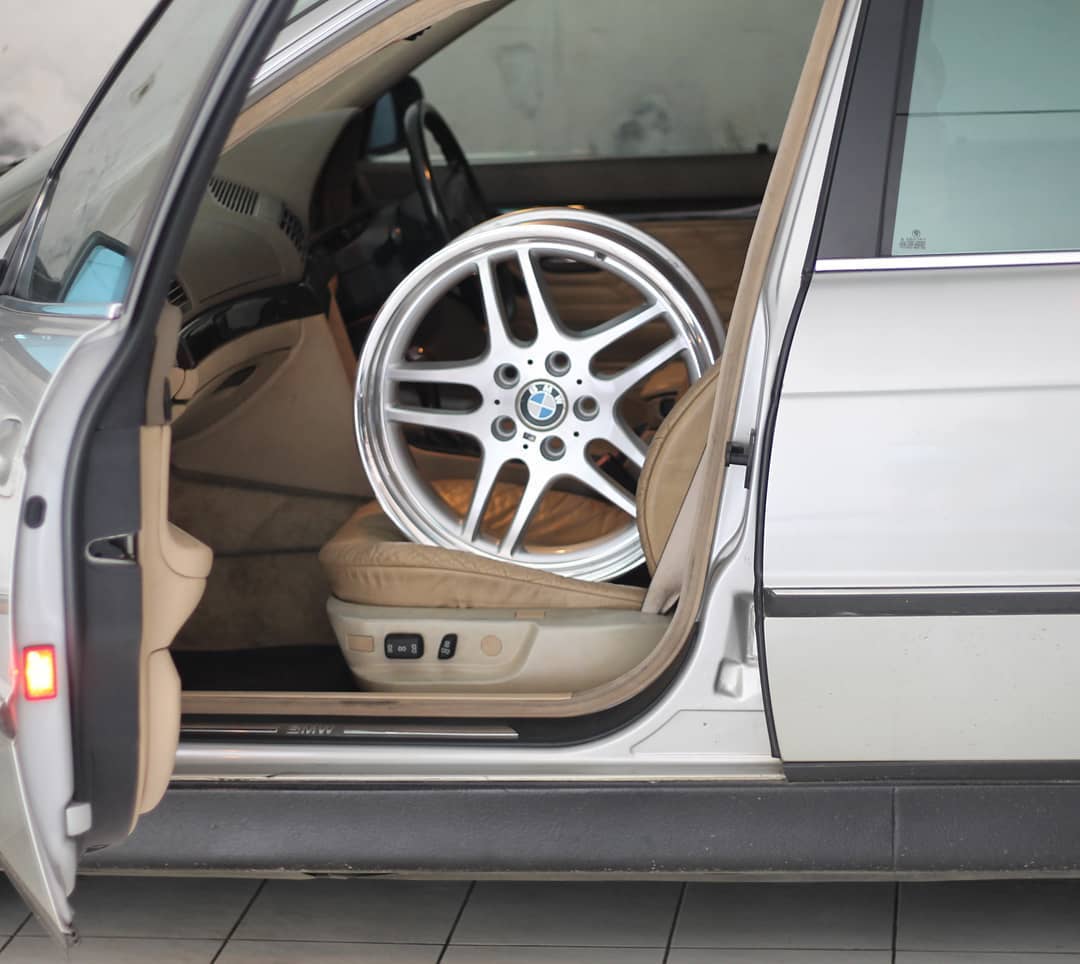

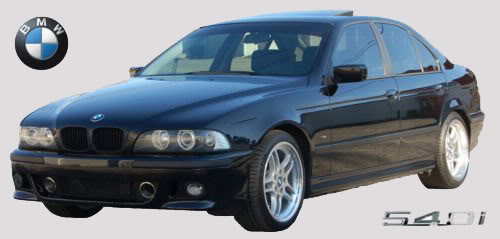

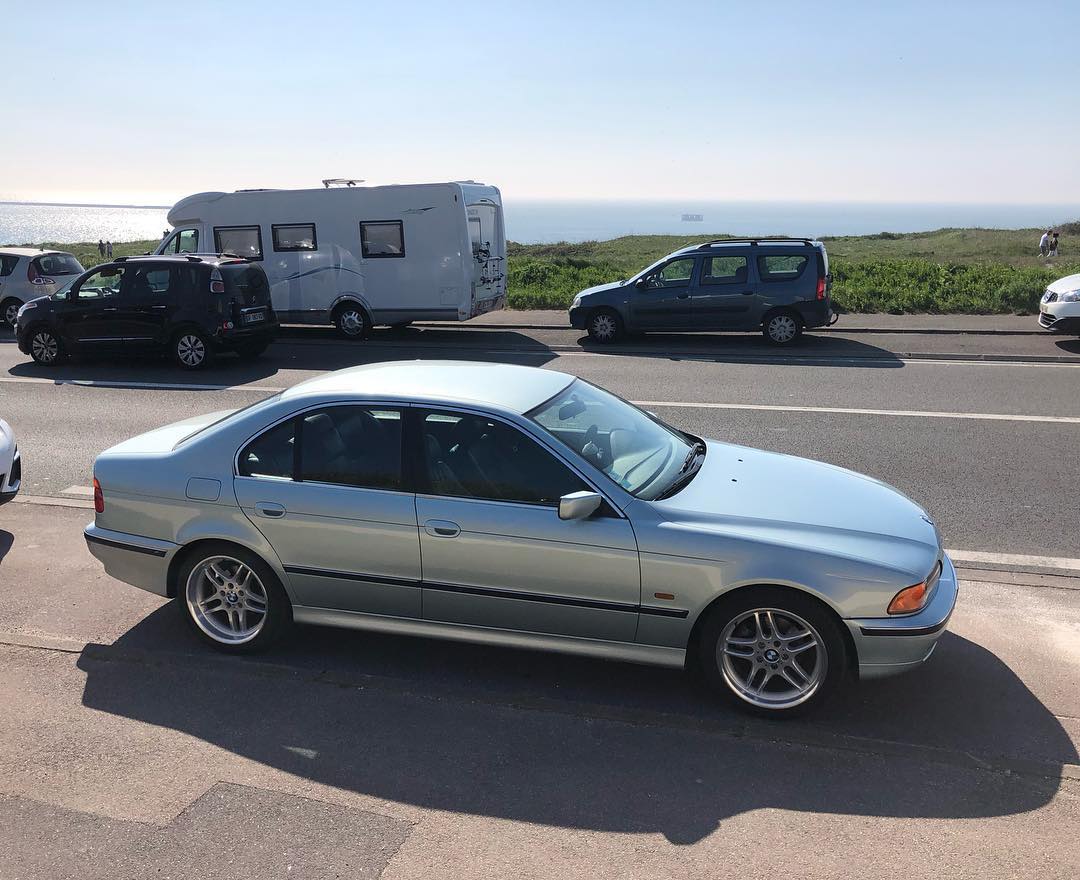

For many people, the M Parallel wheels are some of the best-looking wheels that BMW ever released. They have become very popular as retrofit wheels on many other BMW models – from the E28 to the E90. Not a complicated wheel design, the clean split-5 spoke is simple and sporty. These wheels are made in a very low offset with an exaggerated front-rear stagger — 18×8.0 ET20 in the front and 18×9.0 ET24 in the rear. The rear wheel has a generous outer lip. These wheels have become a favorite restomod upgrade for E31, E34, and other E38 models. We have even seen them on E46 M3 and E90s. This set uses the wheels from the E39 chassis and have a 74.0mm center bore. Wheel centering rings will be required for non-E39 fitments (included). These are a direct fit for all E39 models. Original name M Parallel Spokes.
| Size | Product No | Except | Offset (ET) | PCD | Center Bore | Rim Width (J) | Weight | Use |
|---|---|---|---|---|---|---|---|---|
| 8x18 | 36 11 2 227 631 | ET 20 | 10,20 kg | front | ||||
| 9x18 | 36 11 2 227 633 | ET 22 | 9,86 kg | back |
| Size | 8x18 |
|---|---|
| Product No | 36 11 2 227 631 |
| Except | |
| Offset (ET) | ET 20 |
| PCD | |
| Center Bore | |
| Rim Width (J) | |
| Weight | 10,20 kg |
| Use | front |
| Size | 9x18 |
|---|---|
| Product No | 36 11 2 227 633 |
| Except | |
| Offset (ET) | ET 22 |
| PCD | |
| Center Bore | |
| Rim Width (J) | |
| Weight | 9,86 kg |
| Use | back |
| Size | Product No | Except | Offset (ET) | PCD | Center Bore | Rim Width (J) | Weight | Use |
|---|---|---|---|---|---|---|---|---|
| 8x18 | 36 11 2 227 631 | ET 20 | 10,20 kg | front | ||||
| 9x18 | 36 11 2 227 633 | ET 22 | 9,86 kg | back |
| Size | 8x18 |
|---|---|
| Product No | 36 11 2 227 631 |
| Except | |
| Offset (ET) | ET 20 |
| PCD | |
| Center Bore | |
| Rim Width (J) | |
| Weight | 10,20 kg |
| Use | front |
| Size | 9x18 |
|---|---|
| Product No | 36 11 2 227 633 |
| Except | |
| Offset (ET) | ET 22 |
| PCD | |
| Center Bore | |
| Rim Width (J) | |
| Weight | 9,86 kg |
| Use | back |
| Size | Product No | Except | Offset (ET) | PCD | Center Bore | Rim Width (J) | Weight | Use |
|---|---|---|---|---|---|---|---|---|
| 8x18 | 36 11 2 227 631 | Touring, M5 | ET 20 | 10,27 kg | front | |||
| 9x18 | 36 11 2 227 633 | Touring, M5 | ET 24 | 10,54 kg | back |
| Size | 8x18 |
|---|---|
| Product No | 36 11 2 227 631 |
| Except | Touring, M5 |
| Offset (ET) | ET 20 |
| PCD | |
| Center Bore | |
| Rim Width (J) | |
| Weight | 10,27 kg |
| Use | front |
| Size | 9x18 |
|---|---|
| Product No | 36 11 2 227 633 |
| Except | Touring, M5 |
| Offset (ET) | ET 24 |
| PCD | |
| Center Bore | |
| Rim Width (J) | |
| Weight | 10,54 kg |
| Use | back |
| Size | Product No | Except | Offset (ET) | PCD | Center Bore | Rim Width (J) | Weight | Use |
|---|---|---|---|---|---|---|---|---|
| 8x18 | 36 11 2 227 631 | Touring, M5 | ET 20 | 10,27 kg | front | |||
| 9x18 | 36 11 2 227 633 | Touring, M5 | ET 24 | 10,54 kg | back |
| Size | 8x18 |
|---|---|
| Product No | 36 11 2 227 631 |
| Except | Touring, M5 |
| Offset (ET) | ET 20 |
| PCD | |
| Center Bore | |
| Rim Width (J) | |
| Weight | 10,27 kg |
| Use | front |
| Size | 9x18 |
|---|---|
| Product No | 36 11 2 227 633 |
| Except | Touring, M5 |
| Offset (ET) | ET 24 |
| PCD | |
| Center Bore | |
| Rim Width (J) | |
| Weight | 10,54 kg |
| Use | back |
| Size | Product No | Except | Offset (ET) | PCD | Center Bore | Rim Width (J) | Weight | Use |
|---|---|---|---|---|---|---|---|---|
| 8x18 | 36 11 2 227 631 | ET 13 | 10,27 kg | front | ||||
| 9,5x18 | ET 25 | 10,54 kg | back | |||||
| 8x18 * | 36 11 2 227 631 | ET 13 | 10,27 kg | front | ||||
| 9,5x18 * | ET 25 | 10,54 kg | back |
| Size | 8x18 |
|---|---|
| Product No | 36 11 2 227 631 |
| Except | |
| Offset (ET) | ET 13 |
| PCD | |
| Center Bore | |
| Rim Width (J) | |
| Weight | 10,27 kg |
| Use | front |
| Size | 9,5x18 |
|---|---|
| Product No | |
| Except | |
| Offset (ET) | ET 25 |
| PCD | |
| Center Bore | |
| Rim Width (J) | |
| Weight | 10,54 kg |
| Use | back |
| Size | 8x18 * |
|---|---|
| Product No | 36 11 2 227 631 |
| Except | |
| Offset (ET) | ET 13 |
| PCD | |
| Center Bore | |
| Rim Width (J) | |
| Weight | 10,27 kg |
| Use | front |
| Size | 9,5x18 * |
|---|---|
| Product No | |
| Except | |
| Offset (ET) | ET 25 |
| PCD | |
| Center Bore | |
| Rim Width (J) | |
| Weight | 10,54 kg |
| Use | back |
| Size | Product No | Except | Offset (ET) | PCD | Center Bore | Rim Width (J) | Weight | Use |
|---|---|---|---|---|---|---|---|---|
| 8x18 | 36 11 2 227 631 | ET 13 | 10,27 kg | front | ||||
| 9,5x18 | ET 25 | 10,54 kg | back | |||||
| 8x18 * | 36 11 2 227 631 | ET 13 | 10,27 kg | front | ||||
| 9,5x18 * | ET 25 | 10,54 kg | back |
| Size | 8x18 |
|---|---|
| Product No | 36 11 2 227 631 |
| Except | |
| Offset (ET) | ET 13 |
| PCD | |
| Center Bore | |
| Rim Width (J) | |
| Weight | 10,27 kg |
| Use | front |
| Size | 9,5x18 |
|---|---|
| Product No | |
| Except | |
| Offset (ET) | ET 25 |
| PCD | |
| Center Bore | |
| Rim Width (J) | |
| Weight | 10,54 kg |
| Use | back |
| Size | 8x18 * |
|---|---|
| Product No | 36 11 2 227 631 |
| Except | |
| Offset (ET) | ET 13 |
| PCD | |
| Center Bore | |
| Rim Width (J) | |
| Weight | 10,27 kg |
| Use | front |
| Size | 9,5x18 * |
|---|---|
| Product No | |
| Except | |
| Offset (ET) | ET 25 |
| PCD | |
| Center Bore | |
| Rim Width (J) | |
| Weight | 10,54 kg |
| Use | back |
| Size | Product No | Except | Offset (ET) | PCD | Center Bore | Rim Width (J) | Weight | Use |
|---|---|---|---|---|---|---|---|---|
| 8x18 | 36 11 2 227 631 | ET 13 | 10,27 kg | front | ||||
| 9,5x18 | ET 25 | 10,54 kg | back | |||||
| 8x18 * | 36 11 2 227 631 | ET 13 | 10,27 kg | front | ||||
| 9,5x18 * | ET 25 | 10,54 kg | back |
| Size | 8x18 |
|---|---|
| Product No | 36 11 2 227 631 |
| Except | |
| Offset (ET) | ET 13 |
| PCD | |
| Center Bore | |
| Rim Width (J) | |
| Weight | 10,27 kg |
| Use | front |
| Size | 9,5x18 |
|---|---|
| Product No | |
| Except | |
| Offset (ET) | ET 25 |
| PCD | |
| Center Bore | |
| Rim Width (J) | |
| Weight | 10,54 kg |
| Use | back |
| Size | 8x18 * |
|---|---|
| Product No | 36 11 2 227 631 |
| Except | |
| Offset (ET) | ET 13 |
| PCD | |
| Center Bore | |
| Rim Width (J) | |
| Weight | 10,27 kg |
| Use | front |
| Size | 9,5x18 * |
|---|---|
| Product No | |
| Except | |
| Offset (ET) | ET 25 |
| PCD | |
| Center Bore | |
| Rim Width (J) | |
| Weight | 10,54 kg |
| Use | back |
| Size | Product No | Except | Offset (ET) | PCD | Center Bore | Rim Width (J) | Weight | Use |
|---|---|---|---|---|---|---|---|---|
| 8x18 | 36 11 2 227 631 | ET 13 | 10,27 kg | front | ||||
| 9,5x18 | ET 25 | 10,54 kg | back | |||||
| 8x18 * | 36 11 2 227 631 | ET 13 | 10,27 kg | front | ||||
| 9,5x18 * | ET 25 | 10,54 kg | back |
| Size | 8x18 |
|---|---|
| Product No | 36 11 2 227 631 |
| Except | |
| Offset (ET) | ET 13 |
| PCD | |
| Center Bore | |
| Rim Width (J) | |
| Weight | 10,27 kg |
| Use | front |
| Size | 9,5x18 |
|---|---|
| Product No | |
| Except | |
| Offset (ET) | ET 25 |
| PCD | |
| Center Bore | |
| Rim Width (J) | |
| Weight | 10,54 kg |
| Use | back |
| Size | 8x18 * |
|---|---|
| Product No | 36 11 2 227 631 |
| Except | |
| Offset (ET) | ET 13 |
| PCD | |
| Center Bore | |
| Rim Width (J) | |
| Weight | 10,27 kg |
| Use | front |
| Size | 9,5x18 * |
|---|---|
| Product No | |
| Except | |
| Offset (ET) | ET 25 |
| PCD | |
| Center Bore | |
| Rim Width (J) | |
| Weight | 10,54 kg |
| Use | back |
| Size | Product No | Except | Offset (ET) | PCD | Center Bore | Rim Width (J) | Weight | Use |
|---|---|---|---|---|---|---|---|---|
| 8x18 | 36 11 2 227 631 | ET 13 | 10,27 kg | front | ||||
| 9,5x18 | ET 25 | 10,54 kg | back |
| Size | 8x18 |
|---|---|
| Product No | 36 11 2 227 631 |
| Except | |
| Offset (ET) | ET 13 |
| PCD | |
| Center Bore | |
| Rim Width (J) | |
| Weight | 10,27 kg |
| Use | front |
| Size | 9,5x18 |
|---|---|
| Product No | |
| Except | |
| Offset (ET) | ET 25 |
| PCD | |
| Center Bore | |
| Rim Width (J) | |
| Weight | 10,54 kg |
| Use | back |
| Size | Product No | Except | Offset (ET) | PCD | Center Bore | Rim Width (J) | Weight | Use |
|---|---|---|---|---|---|---|---|---|
| 8x18 | 36 11 2 227 631 | ET 13 | 10,27 kg | front | ||||
| 9,5x18 | ET 25 | 10,54 kg | back |
| Size | 8x18 |
|---|---|
| Product No | 36 11 2 227 631 |
| Except | |
| Offset (ET) | ET 13 |
| PCD | |
| Center Bore | |
| Rim Width (J) | |
| Weight | 10,27 kg |
| Use | front |
| Size | 9,5x18 |
|---|---|
| Product No | |
| Except | |
| Offset (ET) | ET 25 |
| PCD | |
| Center Bore | |
| Rim Width (J) | |
| Weight | 10,54 kg |
| Use | back |
